W62 Sparkling Water Dispenser Product Instruction

This unit integrates RO reverse osmosis filtration, instant heating and compressor refrigeration technologies into an all-in-one, no-install countertop sparkling water purifier.
It effectively removes harmful contaminants from water to ensure reliable water quality, allowing you to enjoy safe and healthy drinking water daily.
Equipped with a rapid heating function, the machine heats water to a drinkable temperature in just 3 seconds. Its integrated waterway design also delivers simpler and safer operation.
Compact and versatile, this water purifier is suitable for living rooms, bedrooms, offices and other indoor spaces. Simply plug it in for immediate use, offering great convenience for daily hydration.
It is an ideal choice for your daily safe and healthy drinking water needs.

Remarks

1. After unpacking, leave the machine to stand for 24 hours before first use.
2. This machine is fitted with a mandatory water replacement reminder. Once the water change indicator lights up, drain all concentrated water from the water tank and refill with fresh tap water. Do not continuously add water to the water tank.
3. Do not move the machine arbitrarily. Empty the water tank completely before relocation.
4. Do not rinse or wash the machine body with water.
5. Do not use multi-purpose power sockets or share the socket with other electrical devices simultaneously. Use a socket rated at no less than 10A.
6. Do not place the water container in a suspended position; always set it firmly on a flat tabletop.
7. Do not fill the water tank with turbid tap water, ice cubes, or mixed liquids such as milk and fruit juice.
8. Do not insert the water outlet nozzle into the cup edge when dispensing water, to prevent scalding hazards or nozzle blockage by boiling water.
9. This appliance may be used by children aged 8 and above, as well as persons with reduced physical, sensory or mental capabilities, or insufficient experience and knowledge, provided they are under supervision or instructed in safe operation and fully understand potential hazards. Children shall not clean or maintain the machine without supervision.
10. If the power cord is damaged, it must be replaced by the manufacturer, authorized service personnel or qualified professionals to eliminate safety risks.
11. Stop using the machine if the inlet water temperature or ambient temperature is lower than 5°C or higher than 38°C.
12. If cold water is dispensed immediately after hot water, the outlet water temperature may remain high. Please take care to avoid scalds.
13. If the raw water fails to meet municipal tap water standards (e.g., high sediment content and excessive TDS value), the service life of the filter element will be shortened.
14. For safety purposes, place the water purifier and dispenser on a flat tabletop with a tilt angle no greater than 10°.
15. Operating voltage range: 220V~ ±10%.
16. Each unit undergoes full water testing before factory delivery. A small amount of residual water inside the machine is normal and acceptable.

Product parameters (W62)

Product name	Reverse osmosis purification machine
Product model	W62
Rated voltage	220V-240V~
Rated frequency	50Hz
Rated power	2400W
Rated heating power	2270W
Rated cooling power	120W
Water heating capacity	18L/h(≥90°C)
Water cooling capacity	3L/h(≤10°C)
Working pressure	0.4-0.6MPa
Applicable water source	City water
Applicable water temperature	5-38°C
Water tank capacity	5L
Net weight	20 kg
Dimensions	467x220x430mm

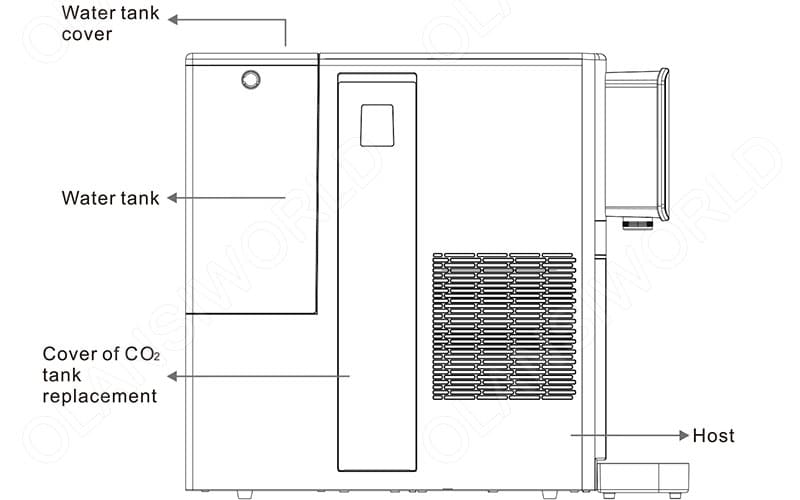

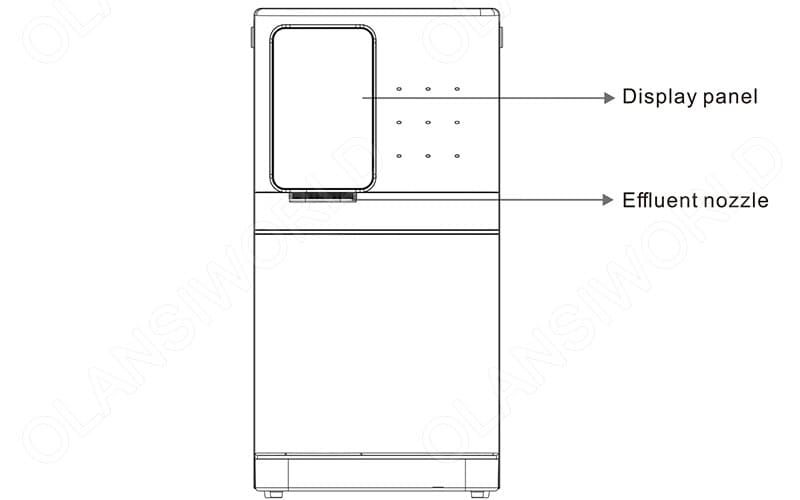

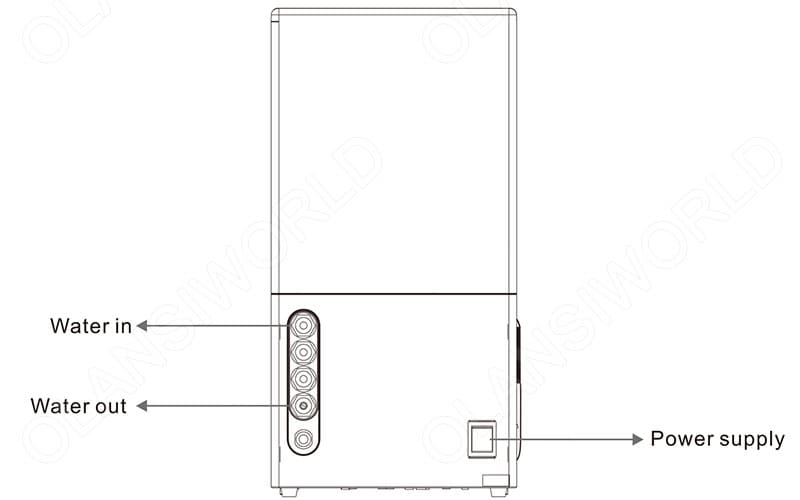

Schematic diagram of products

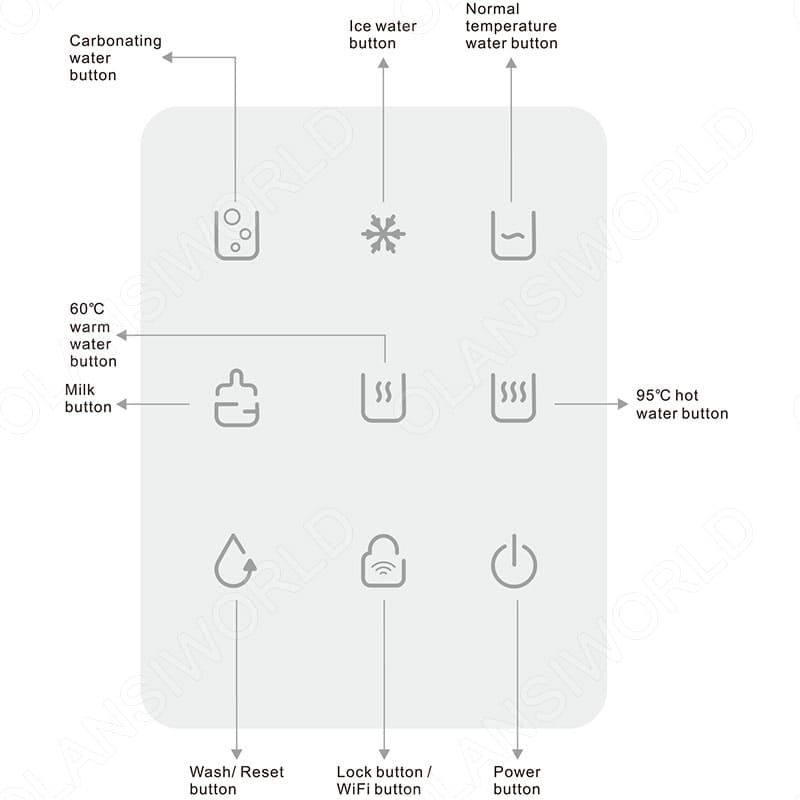

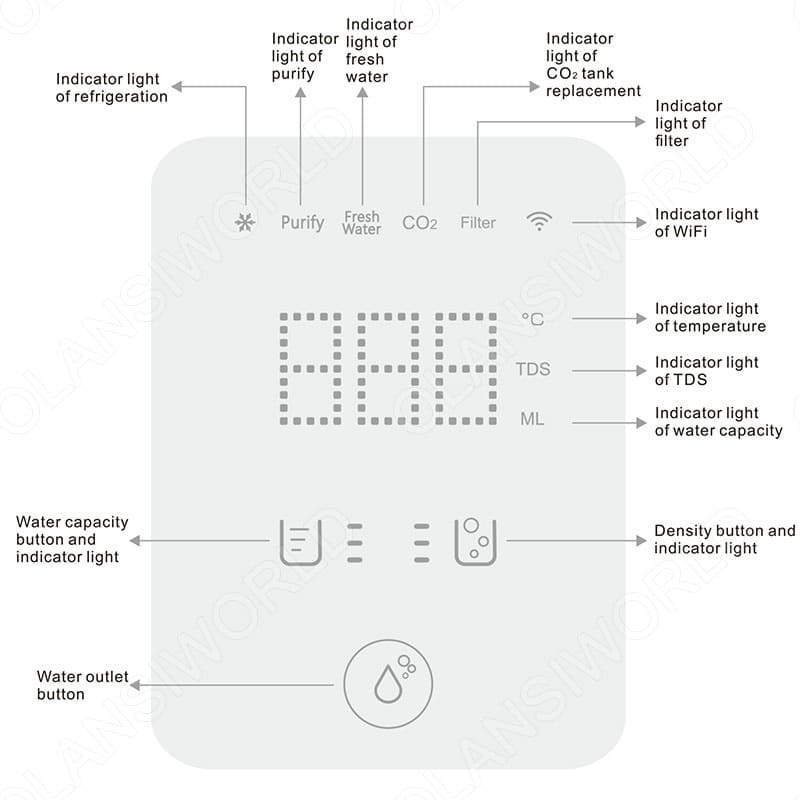

Product function introduction

The machine buzzer will beep once. The Power button lights up white. Press the Power button to turn on the display panel and all button indicators.
In standby mode, the Power button lights up white. Touch and hold the Power button for 2 seconds; the indicator turns red.

① The machine buzzer will beep once. The Power button lights up white. Press the Power button to turn on the display panel and all button indicators.In standby mode, the Power button lights up white. Touch and hold the Power button for 2 seconds; the indicator turns red.
② The indicator lights up white during cooling and turns blue when cooling is complete.
③ The white indicator stays on during purification and flashes during washing.
④ The red indicator stays on when the water tank is short of water.
⑤ The soda water outlet is disabled when the red indicator is constantly on.The indicator turns off after replacing the CO₂ cylinder, and water can be dispensed normally.
⑥ Filter Element Life Indication
20% ＜ Filter life ≤ 100%：White indicator
0 ＜ Filter life ≤ 20%：Yellow indicator
Filter life expired：Red indicator
⑦ No indicator lights up when there is no network. The white indicator turns on after a successful network connection.
⑧ TDS data is displayed on the panel with the corresponding indicator.
⑨ Water volume is displayed on the panel with the corresponding indicator.
⑩ Temperature data is displayed on the panel with the corresponding indicator.
⑪ TDS is displayed in standby mode. When the water outlet button is pressed, the panel alternately shows temperature and water volume every 2 seconds. A fault code is displayed when an error occurs.
⑫ Three indicators show water volume: bottom = 150 mL, middle = 300 mL, top = 500 mL. When pressing the water volume button, TDS displays 150 / 300 / 500, and the ML white indicator turns on. The buzzer beeps once per press.
Settings are saved after display.
The top level is the default value, and settings are memorized. The machine exits if no operation is performed within 5 seconds or another button is pressed.
⑬ The white indicator has high/medium/low brightness levels corresponding to top/middle/bottom positions. The top level is the default value, and settings are memorized.
The buzzer beeps once per press. The machine exits if no operation is performed within 5 seconds or another button is pressed.
⑭ The indicator normally lights white.
* Blue: Soda water or ice water dispensing
* White: 45 °C / 60 °C water dispensing
* Red: 95 °C – 100 °C hot water dispensing
⑮ The indicator normally lights white (usually off). It turns on when used with the density button.
The water outlet button indicator lights blue during dispensing and stays white after dispensing.
⑯ The indicator normally lights white (usually off).
Press the button once; the panel displays ice water temperature. When the indicator turns blue, press the button until dispensing finishes; the indicator stays white.Long press ICE WATER for 5 seconds; the panel displays ice water temperature (default: 5 °C).
Press the water volume button to adjust between 4 °C, 5 °C, 6 °C (adjustable range: 4–6 °C).
⑰ The indicator normally lights white (usually off).Press the button; the panel displays 25 °C, and the water outlet indicator turns white.Press" ⑫ " to adjust water volume. Press the water outlet button; the white indicator turns on and stays white after dispensing.
⑱ The indicator normally lights white (usually off). Press the button; the panel displays 45 °C, and the water outlet indicator turns white. Press ⑫ to adjust water volume. Press the water outlet button ⑭; the white indicator turns on and stays white after dispensing.
⑲ The indicator normally lights white (usually off). Press the button; the panel displays 65 °C, and the water outlet indicator turns white. Press ⑫ to adjust water volume. Press the water outlet button ⑭; the white indicator turns on and stays white after dispensing.
⑳ The indicator light is lighting white color, normally it is off. Press the button,machine buzzer will sound "Ding Ding" ,at the same time,Lock / WiFi button " ㉑" will twinkled for twice. Firstly, press the lock button, the indicator lightis off, secondly, press 95°C hot water button, display panel shown temperature 95°C. Indicator of water outlet turns to red, press" ⑫ " to adjust the watercapacity.Press water outlet button" ⑭ ",white indicator lightis on,if finish water outlet, indicator will be long lighting in white color.
㉑ Long press"㉑ Lock/WiFi "for 3s,yellow indicator light will twinkle for searching single.When finish connecting,"WIFI" white indicator light will be long lighting. If failed to connect, the indicator light will be turn off. If it already connected,long pressfor 3s to unlink WiFi and enter to searching network status.
㉒ Reset function: Short press the button; the Filter icon flashes white.Press once: the yellow indicator flashes.Press again: the red indicator turns on.Long press for 3 seconds; the buzzer beeps once.The setting is successful when the Filter icon stays lit white. Wash function: Long press the button for 3 seconds to start filter washing.Long press ㉒ WASH/RESET + ⑱ MILK at the same time to drain water from the water tank.

Optional mode: Switch between water tank mode and pipe mode. The default mode is water tank.
Long press ㉒ WASH/RESET + ① POWER for 3 seconds; the machine beeps once and G appears on the display. This means the machine has switched to pipe mode. It will return to normal status after G is displayed for 10 seconds.
Long press ㉒ WASH/RESET + ① POWER for 3 seconds; the machine beeps once and S appears on the display. This means the machine has switched to water tank mode. It will return to normal status after S is displayed for 10 seconds.
Press ㉒ WASH/RESET to enter washing mode when using the machine for the first time or after replacing the filter.
Press ㉒ WASH/RESET to drain all water from the tank. Please place a water container under the water outlet during washing mode.
After step 1 is finished, install the CO₂ cylinder to the designated position for normal use.

Tips: The CO₂ cylinder cannot be installed to the designated position before cleaning. It must be installed only after cleaning is completed

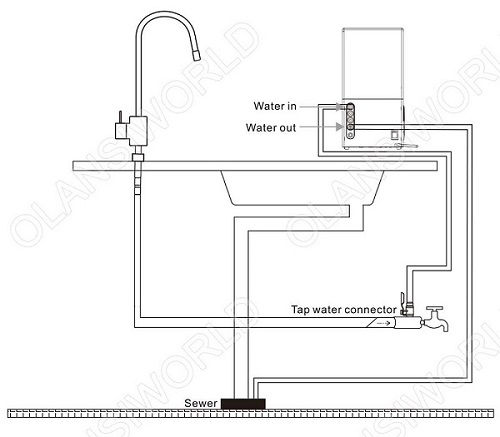

Waterway Installation Diagram

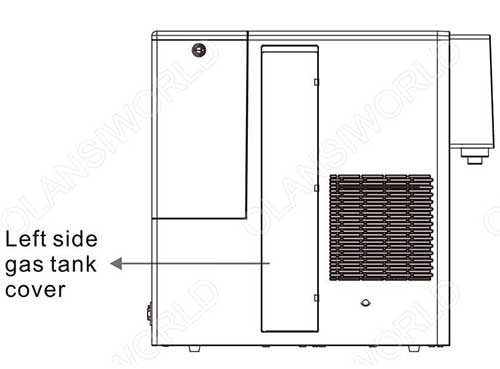

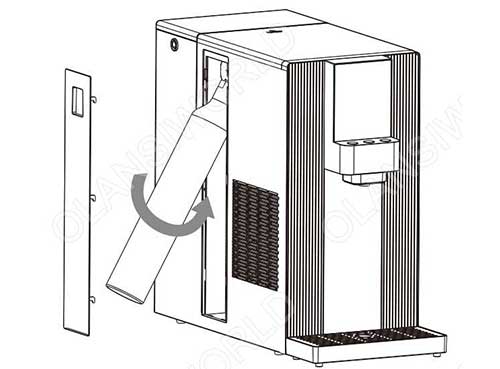

Steps for replacement of bubble tank

When the machine displays” CO₂”, it indicates the need to replace the gas cylinder.

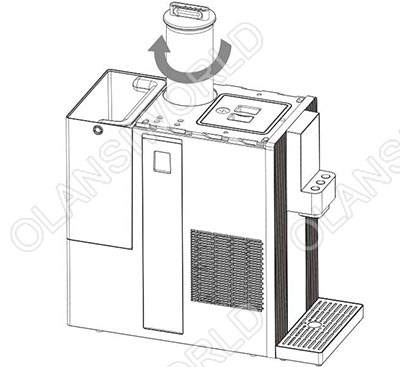

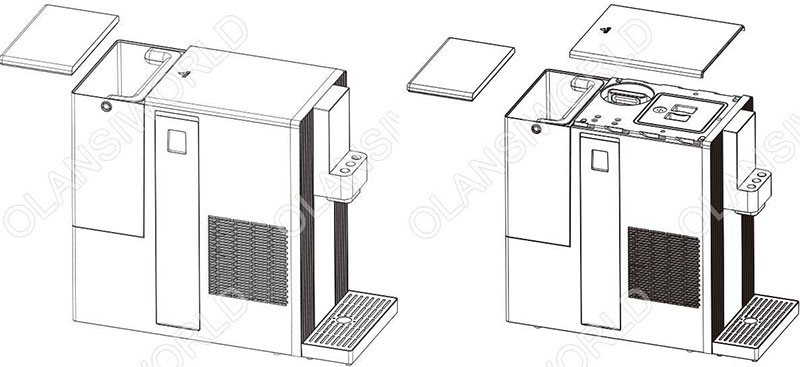

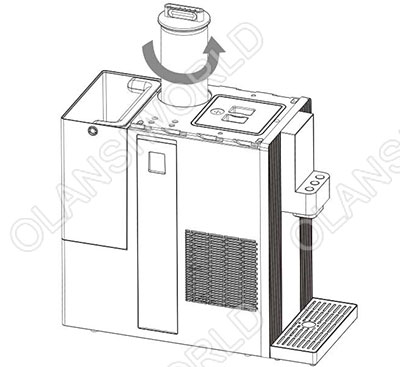

Replacement of filter element

Step 4: After replacing the filter element, click “Wash/Reset”to reset the filter element. After replacing the filter element, it is recommended to use the cleaning function to flush the new filter element.

Note: Original filter element must be used for replacement to ensure the safety of drinking water. For any abnormal situation during the replacement of filter element, please contact the customer service center in time

Function of filter element

Filter element for short	Type of filter element	Function	Recommended replacement period
RO	4 in 1 RO Reverse osmosis composite filter element	Removal of impurities such as silt, rust, sand, suspended solid and blood worm; Removal of residual chlorine, germ, heavy metal and absorption of disagreeable tastes and odors; Prevent the growth of germ and improve the tastes.	24 months
