W19C Product Instruction

Product parameters (W19C)

Product Name	Reverse Osmosis Water Purifier Dispenser
Product Model	W19C	W19C
Rated Voltage/Frequency	110V~ / 60Hz	220V~ / 50Hz
Rated Power	1500W	2200W
Rated Heating Power	1400W	2100W
Electrical Power Consumption	—
Water Heating Capacity	16L/h (≥90°C)	18L/h (≥90°C)
Purified Water Capacity	30L/h
Applicable Water Pressure	0.4~0.6MPa
Applicable Water Source	Tap water
Applicable Water Temperature	5-38°C
Water Tank Capacity	6L
Net Weight	11.2 kg
Dimensions	475 × 240 × 430mm
Rated Cooling Power (Model With Refrigeration)	90W – 120W
Water Cooling Capacity	1.2L/h (≤10°C)

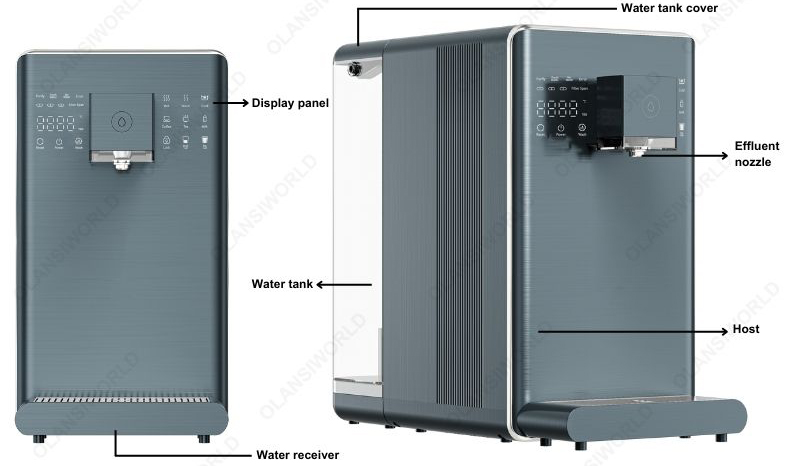

Schematic diagram of products

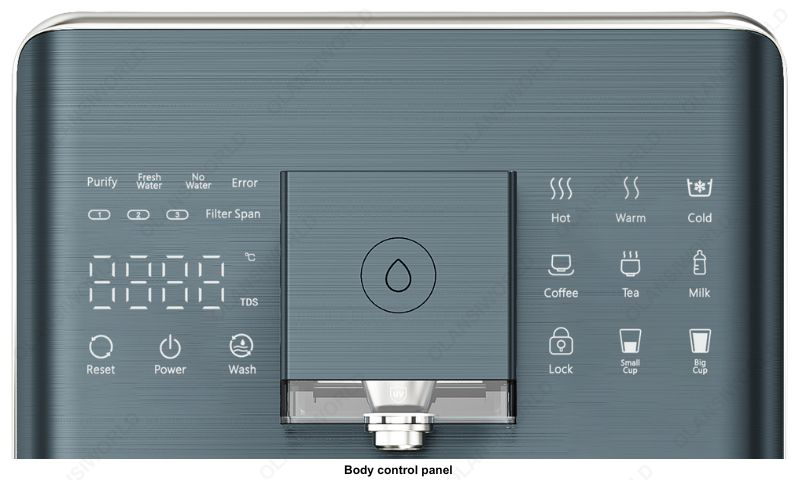

Product function introduction

The key is used to power on and off the water purifier. Long press the key for 2 seconds under standby mode, the purifier will switch into power-on mode. Long press the key for 2 seconds to turn off the power when the power is on.
The key is used to clean the internal waterways and water tanks and drain the stored water. This function is recommended for initial use, after filter element replacement and restart using after unused for a long time. Long press the key of “Intelligent Clean” under power-on mode to start the automatic clean, and the whole process will take 6 minutes.
These indicators are used to suggest the life of the filter element. White indicator is to suggested that the status of filter element is normal. Orange indicator is to suggested that 80% of filter element have been consumed. Red indicator is on suggested that the filter element life have been expired and it should be replaced.
Press the reset key after the filter element has been replaced to restart counting the life of the new filter element. Long press the reset key for 3 seconds under power-on mode, instantly press the key to choose the filter element which service life needs to reset, long press the key again thus the filter element replacement has been completed.
It indicates the working state of the water purification system of the water purifier. The indicator is on means it’s during the process of water making. The indicator flashes means that filter element has been washing. After the completion of these processes, the indicator will be off.
Fresh Water indicator is on means that the original water tank is in lack of water, which reminds user to replace water in the original water tank and pour out the water in the concentrated water tank.
No Water indicator is on means the built-in pure water tank is in lack of water, and you can not get water at this time that you need to wait for water production.
The key is used to prevent scalding. If you want to take “Coffee, Tea, Hot” or get hot water and warm water, you need to press the child lock key firstly before pressing the corresponding water temperature.
You can get quantitative water of 150ml. First press “small cup” key and then choose the corresponding water temperature.
You can get quantitative water of 300ml. First press “big cup” key and then choose the corresponding water temperature.
Press “Normal” to get water with normal temperature water
Press “Milk” to get water with temperature between 45-48°C.
Press “Cold” to get water with iced water.
Press “Coffee” to get water with temperature between 85°C.
Press “Tea” to get water with temperature between 90°C.
Press “Hot” to get water with temperature between ≥90°C

Operation guideline

Step 1: Place water purifier in flat place such as desktop or cabinet countertop;

Step 2: Remove the water tank, fill the raw water tank with fresh tap water, and install the water tank on the purifier and close the lid of the water tank;

Step 3: Plug in the purifier to power on the electricity. Long press the power key for 2 seconds to start the purifier;

Step 4: To achieve excellent water with great quality, it is recommended to clean the purifier manually after long press the “Wash” for 3 seconds. Place a water container at the outlet (e.g.: Bucket, etc.).
After 6 minutes, you can operate the purifier for daily use;

Step 5: After the cleaning process, the water tank should be emptied and re-added of tap water. The water purifier will start to make water automatically. After the water making is completed, it can be used normally.

Daily use

1. Press “Normal” “Warm” “Milk” and other keys;

2. Touch “Water Out” again to directly discharge water;

1. Press “Lock” unlock;

2. Press “Coffee” “Tea” “Hot” and other keys;

3. Touch “Water Out” again to directly discharge water;

1. Press “Normal” “Milk” “Cold” “Coffee” “Tea” “Hot” and other keys, (If you need to “Coffee” “Tea” “Hot”, you need to touch the “lock” to unlock);

2. If you touch the “small cup” and “Big cup” keys, the cup of water corresponding to the water temperature will be output;

3. Touch “Water Out” again to directly discharge water;

Notice:
(1)The dispenser is set with quantitative water-out protection, and the water-out is automatically stopped after more than 1000ml of water came out.
(2)When taking hot water, do not stretch your arms below the outlet in case of scalding.
(3)To prevent dry burning, please flow out some normal temperature water before the first time of dispenser powering and hot water getting.

When the water comes out, you can press any temperature key to stop the water.

Manual Setting Temperature Mode
Long press “Hot” for 3 seconds, the dispenser enters the temperature regulation mode, digital tube displays“95″. Press “Small cup” to reduce the temperature for 1 degree, and press “Big cup” to raise the temperature for 1 degree. The lowest adjustable degree is 85 degrees. After getting to the desired temperature.no operation for 5 seconds will indicate the prior setting has been completed successfully.

Cooling Function Dispenser
When using the ice water function for the first time, click the “Cold” button to dispense water directly, exhaust air to the pipeline until the water outlet comes out, then stop the water outlet.
During the dispenser’s work in progress, you can long press the “Cold” button for 5 seconds to turn off the cooling function. To long press the “Cold” button for 5 seconds again, you can turn on the cooling function.(Applicable to dispenser with cooling function)

Replacement of filter element

Step 1: Turn off the power and take out the old filter element (① ②)

Step 2: Installation of new filter element (③ ④)

Press the “Push” button pops to open the head cover of the machine automatically;

Rotate the filter element counterclockwise and take it out upward;

Assemble the new filter element and rotate it clockwise to tighten it;

Press and hold “RESET” and then touch “RESET” to select the corresponding filter element.
Press and hold “RESET” for 3s to complete resetting.

Note: Original filter element must be used for replacement to ensure the safety of drinking water. For any abnormal situation during the replacement of filter element, please contact the customer service center in time.

Function of filter element

Filter element for short	Type of filter element	Function	Recommended replacement period
PAC	Folding PP cotton activated carbon rod composite filter	Removal of impurities such as silt, rust, sand, suspended solid and blood worm; removal of residual chlorine and absorption of disagreeable tastes and odors.	6-12 months
RO	Reverse osmosis filter element	Filter precision of 0.0001 μm, removal of incrustation and heavy metal	12-24 months
CF	Rear composite carbon rod	Further increase the taste	6-12 months
