W90 Water Dispenser with Ice Making — Product Instruction
Safety warning
*Do not flush the fuselage with water.
*It is strictly prohibited to use the universal socket simultaneously with other electrical appliances, and no less than 10A socket should be used.
*It is strictly prohibited to place the water box of the non-wall hanging machine in the air. The water box should be placed smoothly on the table.
*Do not wipe the water tank with alcohol.
*lt is strictly forbidden to add muddy tap water, ice cubes and other mixed liquids. Such as milk and fruit juice, to the water tank.
*When receiving water, it is strictly prohibited to put the water nozzle into the cup mouth, to avoid the danger of the boiling water blocking the water nozzle.
*Displacement is prohibited.
⚠︎ The following are the [ Mandatory ] contents
*If the power cord is damaged, it must be replaced by the manufacturer, its maintenance department or similar departments to avoid danger. Avoid squeezing, folding, knotting, or damaging the power cord.
*Do not put other items at the bottom and periphery of the fuselage.
*The applicable temperature of the pure water in the water tank is 5-38 °C.
*The socket connected to the power cord of the product must be connected with reliable grounding device.
*When the ambient temperature is lower than 0, the water in the machine may freeze. Please note to empty the water in the machine when it is not in use.
⚠︎ The following are the [ Attention ]matters
*To avoid danger, please place them on a flat, clean heat-resistant table.
*Take them lightly during handling to avoid scratch or damage to the products.
*Handling and storage process to prevent damage by rain and snow.
*When the raw water does not meet the municipal tap water standards (including large sediment content in the water, excessive residual chlorine, etc.)the life of the filter element will be sharply reduced. It is suggested that the raw water should be added to the water tank after pretreatment.
*When removing the water tank, please ensure that the machine is stable to prevent the machine from dumping.
*In order to avoid the danger caused by operation error, it is not recommended to use this product for people with physical, sensory and mental defects and children. If the above personnel use it, they should use it correctly, under the
supervision of normal adults.
*Clean and replace the filter element regularly. When used, the new machine shall be cleaned for the first time.
*When the water temperature is low, the water production time of the water tank will be extended, which is the inherent feature of the original film.
*The product has the function of heating, and the top cover may be slightly hot during use, which is a normal phenomenon.
*After taking the water with a high temperature, take the low-temperature water immediately. The temperature of the fresh water may be relatively high. Please beware of scalding.
*This product is only suitable for safe use in areas below 1500 meters and shall be used when the water inlet temperature or ambient temperature is as low as5 or as high as 38°C.
*After the first use or unused for a long time, the water outlet will be delayed, which is a normal phenomenon.
⚠︎ The following are the [ Warning ] matters
*Warning: Keep ventilation unobstructed around or in the embedded structure.
*Warning: Not to use mechanical equipment or other methods except as recommended by the manufacturer.
*Warning: Do not damage the refrigeration circuit.
*Warning: Do not use appliances in the pantry of appliances except for the type recommended by the manufacturer.
*Disconnect the power supply before maintenance.
*The product is only used in home indoor scenes and is used for special situations that may cause danger.
🚫 The following is the content of [Compressed appliance warning]
Instructions for compression appliances of combustible refrigerant. For compressed appliances using combustible refrigerant, the instructions shall include information on how the appliance is installed:
*The design of the refrigeration system should fully consider the system.
*The broken compressor is not allowed to use.
*After the compressor is installed on the box body, it must always be kept vertical during the transportation process, as shown in the figure below”Direction 1″. In the process of loading and unloading, “Direction 1” is preferred In case of special circumstances, it is recommended to use “Direction 2” first and “Direction 3” second. The bad condition caused by handling in other directions should have nothing to do with the compressor itself. And our company will not assume any relevant responsibility.
Installation notice
*System vacuum degree (compressor): 0.025 MPA.
*Non-condensing gas is limited to:1%.
*Maximum connector opening time: 10 minutes.
*The compressor cannot withstand high voltage or start and run under vacuum conditions, and the compressor cannot vacuum the system.
*The compressor operating and horizontal state tilt is not greater than 5°
*Use of a nonspecified type of freezer oil: Prohibited.
*Compressor return fluid: Not allowed.
* The inventory period after the compressor factory should not exceed 6 months.
* If more than 6 months, please check whether the dry air in the compressor is sufficient, and should supplement if necessary.
Know your Reverse Osmosis Drinking Machine
1. Before use
Thank you for choosing and using this product. For your convenience, please read the manual carefully before the first use, and keep this manual properly for future use. The manual is an important part of this Reverse Osmosis Drinking Machine. If the product is transferred to others, please come with this manual. Due to the continuous upgrading of this product, the obtained product may not be completely consistent with the contents of the specification

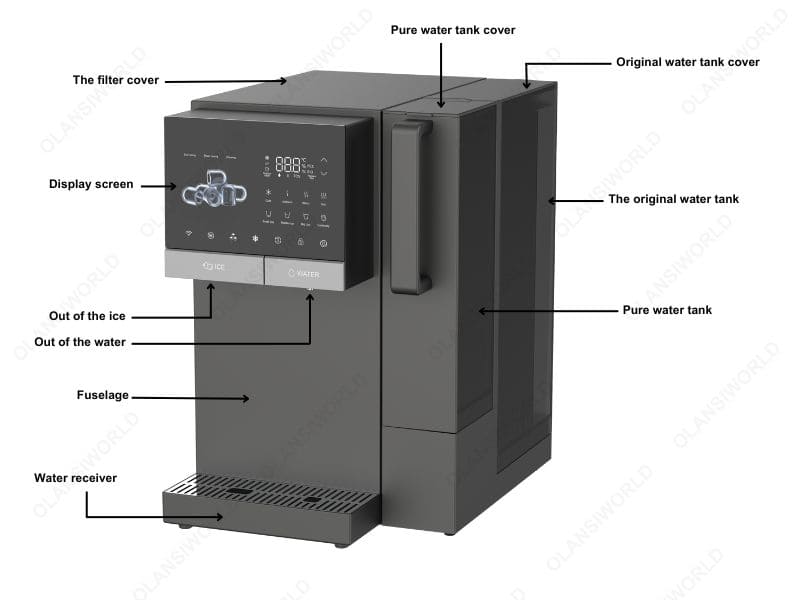

2.Schematic diagram of products
Product parameters
| Product name | Reverse Osmosis Drinking Machine |
|---|---|
| Product model | W90 |
| Rated voltage | 220-240V |
| Rated frequency | 50Hz/60Hz |
| Rated power | 2100W |
| Rated total net water | 4000L |
| Rated heating power | 2000W |
| Rated cooling power | 88W |
| Standby power consumption | ≤1.2kw·h/24h |
| Water cooling capacity | 2.5L/h(≤10°C) |
| Water heating capacity | 18L/h(≥90°C) |
| Water production flow | 0.26L/min |
| Ice bile volume | 1.2L |
| The number of ice | 9pcs / times |
| Cryogen | R600a |
| The amount of filling | 27g |
| Volume of original water tank | 4.8L |
| Pure tank volume | 2L |
| Climate type | ST |
| Working pressure | 0.4-0.8MPa |
| Applicable water source | City water |
| Applicable water temperature | 5-38°C |
| Net weight | 16.6kg |
| Gross weight | 19.4kg |
| Product size | 455x305x415mm |
First time use of the machine
1. Packing Removal
Open the whole package, take out the built-in accessories and data, take out the whole machine from the packaging box, take off the packaging bag, and take out the water box from the package, place the water box directly under the outlet of the machine, and save the outer package for future transportation.(Note: The compressor in the machine contains refrigerant. If the machine is inverted, please put the machine for 12 hours and then turn on the refrigeration or ice making function.)
2. Machine installation activation guide
First, the Reverse Osmosis Drinking Machine is placed in the table-top or cabinet table, and the water box is placed directly below the water outlet of the machine;
3. Machine placement instructions

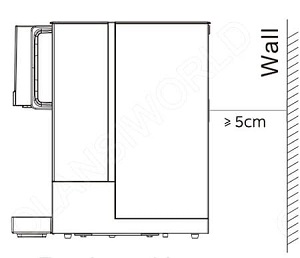

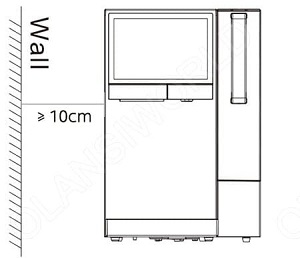

If the whole machine is placed against the wall, please keep the appropriate distance according to the following suggestions: 5cm on the back and 10cm on the side. Pay attention to no external objects around the heat dissipation port.

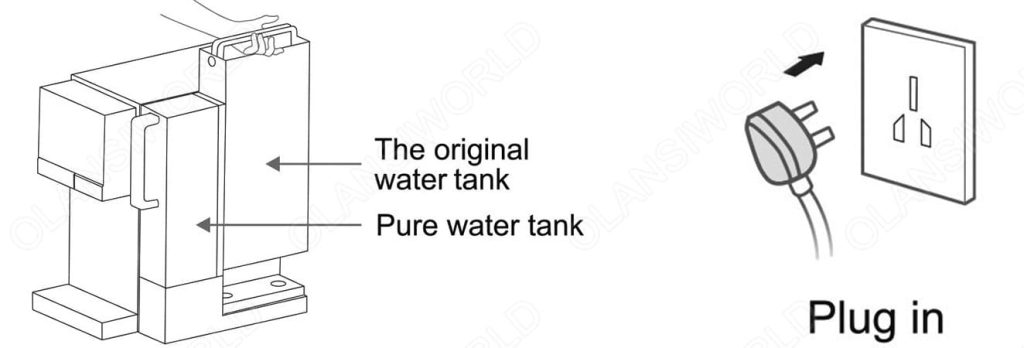

4. First power-up rinse
Power to flush the machine for the first time, it is recommended to rinse 3 boxes of water before use:
Machine first refrigeration

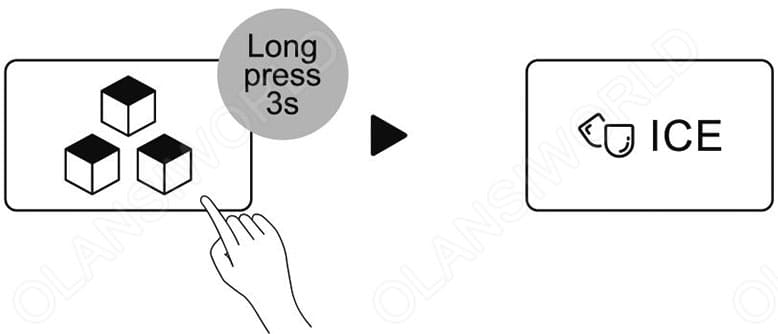

The machine made ice for the first time

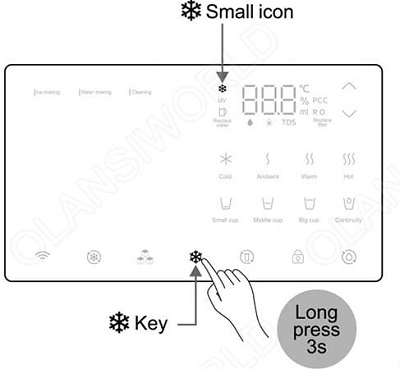

1. After the machine completes the water production, long press the key to open the ice making function in 3 seconds. [Ice making] text flashes. After the water temperature of the cold water box reaches the ice making state, [ice making ] text often starts to make ice. After about 15 minutes, the ice removal operation can be conducted.
2. After making ice is done, the key is always bright, [ice making] the text goes out, the refrigerator is full of ice, click [ICE] button, ready to make ice.
Instructions for using the removable pure water tank
The machine made ice for the first time

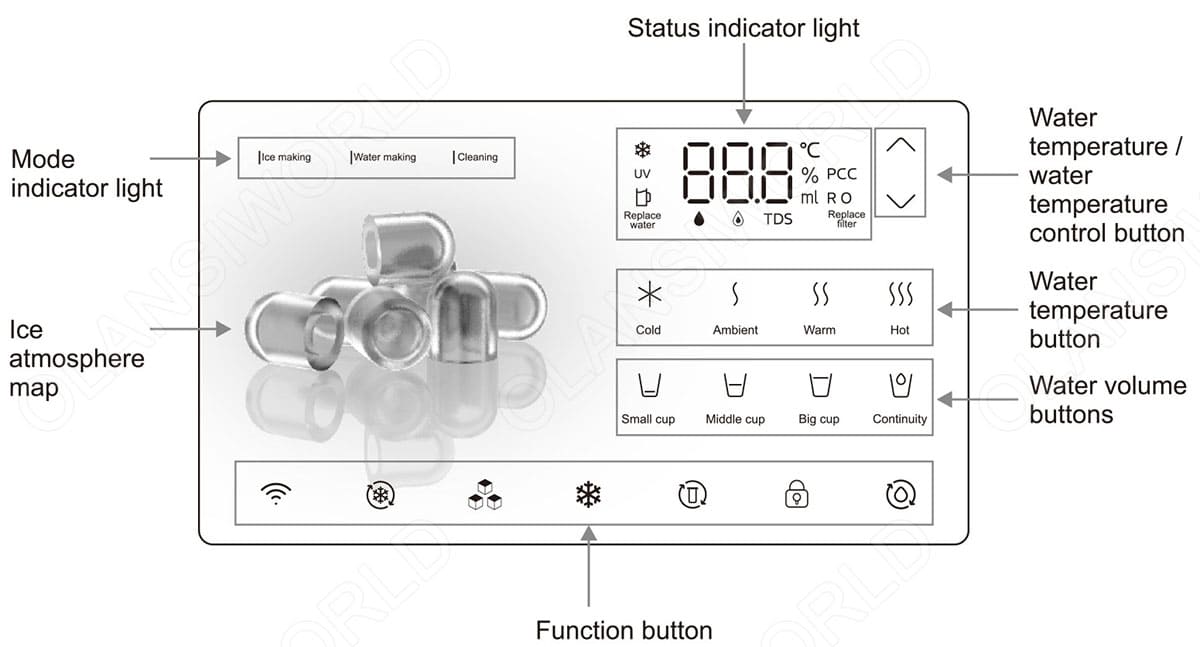

Instructions for preparation before use
Ensure that the product is installed and activated as required by the installation guidelines.
-

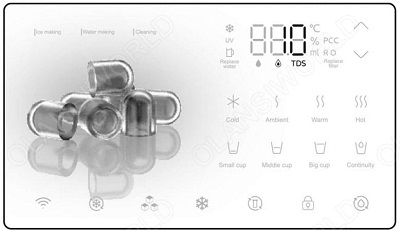

Self-cleaning:
1. Long press [Self cleaning] the key for 3 seconds, it can enter the cleaning mode, if cleaning, can be short press to stop cleaning;
2. The default self-cleaning reminder is 7 days, after the time arrives, the icon will flash: -
Children's lock:
1. Long press [Children's lock] the key for 3 seconds, it can open or close the child lock function:
2. When the child lock function is turned on, when the water temperature is greater than 40°C, press [Children's lock] the key to unlock the water, otherwise [Children's lock] the icon will flash twice and send a“ Di” reminder to unlock.
3. After the child lock function is turned off, the water does not need to be unlocked again. -
Filter reset:
1. Short press [Filter reset] the key to enter the filter reset setting. First display RO, then click to switch the“ PCC ” filter, the long press [Filter reset] the key for 3 seconds will reset the filter (the life of the filter is 100%);

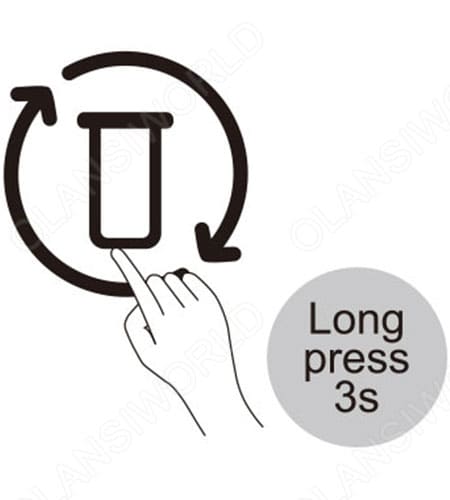

2. Long press [Filter reset] the key for 3 seconds, then reset the filter, after the successful reset, the buzzer rang. When the filter reset is selected, the icon is fully bright; when the filter reset is not selected, the icon is half bright;
3. If the filter is not reset, long press [Filter reset] the key for 3 seconds, can directly reset the filter element life of 0% -
Refrigeration Switch:
1. The refrigeration function is not turned on by default.
2. Long press [Refrigeration Switch] the key for 3 seconds to turn the cooling function on or off.
3. When the refrigeration function is opened, the corresponding refrigeration lamp will flicker. During the refrigeration process, the lamp flashes, and the icon is fully white when the refrigeration is completed; 4. When the refrigeration function is turned off, the refrigeration icon is half bright; -
Ice switch:
1.ice making function is not enabled by default.
2. Long press [ice switch] the key for 3 seconds to turn the ice making function on or off .
3. When the ice-making function is opened, the icon is fully bright;
4. When the ice making function is turned off, the icon is half bright; -
Flood icing Fresh water Switch:
1. After opening the ice making or refrigeration function, open the ice spring fresh water mode by default;
2. Long press [Flood icing Fresh water Switch] the key for 3 seconds to open or close the ice spring fresh water mode;
3. After opening the ice making or refrigeration mode, when the ice spring fresh water mode is opened, the icon fully bright and automatically recycled every 3 hours;
4. After opening the ice making or refrigeration mode, if the ice spring fresh water mode is not opened, the icon is right;
5. After opening the ice spring fresh water mode, short press [Flood icing Fresh water Switch] the key immediately start the ice spring freshwater mode, intelligent operation for about 8 minutes, the icon flashing during the operation;
6. When the ice making and cooling mode are not on, the icon is off; -
Wi-Fi (Only for version with Wi-Fi):
1. Without SN code or Wi-Fi module, white light half-lit.
2. The white light is on when the network is successful.
3. When a Wi-Fi emits a hotspot, the icon white light flashes slowly.
4. In Wi-Fi networking, the icon white lights flash.
5.Failure of Wi-Fi connection/password error/Unable to find the router light, half bright after 10 minutes.
6. Long press the [Wi-Fi] button for 3 seconds to enter the APP distribution mode.
7. Long press the [Wi-Fi] button for 8 seconds to restore the factory mode. -
Cold water button:
1. After opening the refrigeration, short press the button to select the cold water, the icon is fully bright.
2. The icon is half-bright when the other water is selected.
3.if the cooling function is off, the icon is off. -
Normal temperature water button:
1. Normal temperature water is selected by default for the first time.
2. When selecting the normal temperature water, the icon is fully bright.
3. The icon is half-bright when the other water is selected -
Warm water button:
1. When pressing the button to select warm water, the icon is fully bright.
2. The icon is half-bright when the other water is selected.
3. Default: 48'C, temperature range 40-85 °C, warm water setting value drop memory. -
Hot water button:
1. When pressing the button to select the boiling water, the icon is fully bright.
2. The icon is half-bright when the other water is selected.
3. Default: 98°C, range of 86-98°C.
4. Boiling water setting value drop power memory. -
Small cup button:
1. The default water output is 200 mL, and the adjustable gear position is 100 mL/150 mL/ 200 mL/ 250 mL.
2. Select the small cup, the icon is fully bright.
3. The icon is half-illuminated when a small cup is not selected. -
Middle cup button:
1. The default water output of the middle cup is 400 mL, and the adjustable gear position is 300 mL/ 350 mL /400 mL/450 mL.
2. Select the centre cup, the icon is fully bright.
3. When the cup is not selected, the icon is half-illuminated. -
Big cup button:
1. The default large cup water output is 700 mL, and the adjustable gear position is 500 mL/600 mL/700 mL/800 mL.
2. The icon is fully lit when the large cup is selected.
3. The icon is half-illuminated when the large cup is not selected -
Continuity button:
1. Continuous cup volume is selected by default for the first time.
2. When selecting the continuous cup measuring outlet water, the longest continuous outlet can be stopped until the pure water tank lacks water or reaches the longest outlet time.
3. The icon is fully bright when the continuous cup quantity is selected.
4. The icon is half-lit when the continuous cup quantity isn't selected. -
Add /subtract button:
1. Touch the button to adjust the water temperature per degree and press the small cup / medium cup / large cup level, and press for 3 seconds to enter the rapid adjustment of water temperature and water quantity. When selecting the button, light the white indicator light;
2. All bright when choosing, half bright when not selected;
3. When outlet, if selected before outlet, half bright;otherwise put out. -
Ice making indicator light:
1. Open the ice making mode, in the process of ice water cooling, the icon is fully bright and flashing in white;
2.Open the ice making mode, the ice water reaches the temperature(10°C), and when the machine is in the ice making mode (ice setting process), the icon is fully bright;
3. If the ice making mode is not on, the icon is off;
4. Open the ice making mode, ice making ice or ice making process water shortage, the compressor stops, the icon is extinguished; -
Water making indicator light:
1. Open the ice making mode, in the process of ice water cooling, the icon is fully bright and flashing in white;
2. Open the ice making mode, the ice water reaches the temperature (10'C), and when the machine is in the ice making mode (ice setting process), the icon is fully bright;
3.if the ice making mode is not on, the icon is off;
4.0pen the ice making mode, ice making ice or ice making process water shortage, the compressor stops, the icon is extinguished; -
Cleaning indicator light:
1. When the machine is cleaned, the icon is fully bright;,
2. When the machine is not in the cleaning state, the icon is off. - Ice atmosphere diagram: On ice exit, the icon breathing is shown.
-
Cooling indicator light:
1. When the refrigeration function is opened, the icon white flashes in refrigeration; when the refrigeration is warm or warm, the white indicator light is fully bright;
2. When the refrigeration function is closed, the icon isn't bright; -
UV indicator light:
1. When the UV runs, the icon is fully bright;
2. The icon is extinguished when the UV is not running -
Pure water tank water change indicator light:
1. When the pure water tank is not placed in place, the icon flashes in red:
2. When the water level of the pure water tank reaches the lowest water level, that is, the machine is short of water, the icon is always bright; -
Replace water indicator light:
1. When the original water tank is detected short of water or not placed in place, the icon is always bright;
2. When the TDS value of the original water tank is greater than 999, the icon flashes in red: -
Raw water button:
1. When the digital tube displays the TDS of the raw water, “ 🌢 " and “TDS" the white indicator light is on.
2. When the digital display shows pure water TDS,“ (“
"and “TDS" the white indicator light is on.
-
PCC filter button:
1. When the digital tube displays the percentage of PCC filter, the icon lights;
2.Filelement life, core change prompt, white indicator light; -
RO filter button:
1. When the digital tube displays the percentage of RO filter, the icon lights;
2.Filelement life, core change prompt, white indicator light; - Replace filter button: When the life of PCC / RO filter element is 0.5%, the filter life is displayed after taking the water, please change the core red light up;
-
Number show 888:
1. When the digital tube shows the water temperature, the 'C bright white indicator light;
2. When the digital tube shows the filter element life, % bright white indicator light;
3. When the digital tube shows the water quantity, the ML light white indicator light; - Ice release button: Short press out of the ice or stop out of the ice,
- Water outlet button: Short press out of the water or stop out of the water,

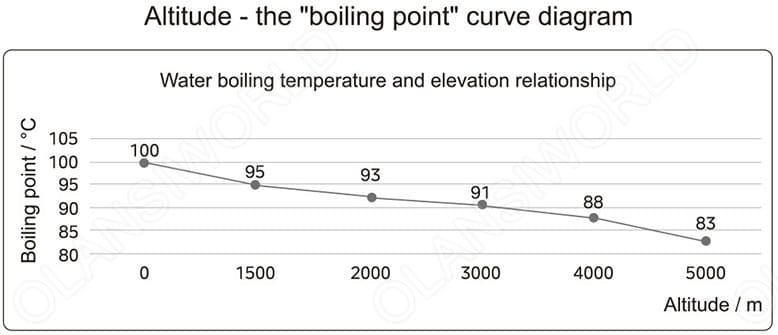

Boiling point autoregulation
1. Boiling point is related to the use of local elevation, please refer to the graph:
2. Common plateau areas: Guizhou, Yunnan, Xizang, Xinjiang, Sichuan, etc., or above 1500 meters.
3. High altitude program entry method: First, ensure that the original water tank is full of water, and place a 1L water receiving container below the water outlet. After powering on, press and hold both “LOCK”and “ HOT ” buttons simultaneously for 3 seconds to enter high altitude mode calibration, and click on the water outlet, the whole process takes about 5 minutes. During the process, the machine will release water, and the water temperature is high. Please pay attention to preventing scalding
Supplementary description of the abnormal situation:
1. if the water tank is lifted during the washing process, the machine shall record the minutes and seconds according to the flushing time until the water tank continues to flush the water for 5 minutes.
2. In case of power failure during the flushing process, the machine shall record the whole number of minutes according to the flushing time, and continue the flushing for 5 minutes.
Description of the “white powder” appearing in the new machine water tank:
The new machine in the early use, the tank will pour out many dense bubbles, visual similar to white powder or white foam. The bubble is the air in the RO reverse osmosis membrane, which is a normal phenomenon and will disappear for about 1 minute. This situation will not affect the water quality, can be assured to drink, with the increase of the number of use. The bubbles will gradually decrease.
Maintenance of Machine
In order to confirm that your reverse osmosis clean drinking machine can operate normally, please conduct regular maintenance.
1 Regular cleaning of equipment
The equipment is not used for a long time, please carry out intelligent washing before reuse; in addition, in order to obtain better taste, it is recommended to perform regular intelligent washing operation once a month.
2 Replacing the filter
It is not necessary to replace the filter element for the machine for the first time. When the filter element reaches the recommended service life, please replace the new filter.
Filter element description
| Filter name | Filter type | Suggested replacement cycle |
| PCC | Filter the sediment, rust, sand. Suspended matter, red insect sand other impurities in the water:filter the residual chlorine in the water, absorb heterochromatic odour, improve taste, and supplement a variety of minerals | 6-12 Months |
| RO | Filter accuracy 0.0001 micron filter scale and heavy metals | 12-24 Months |

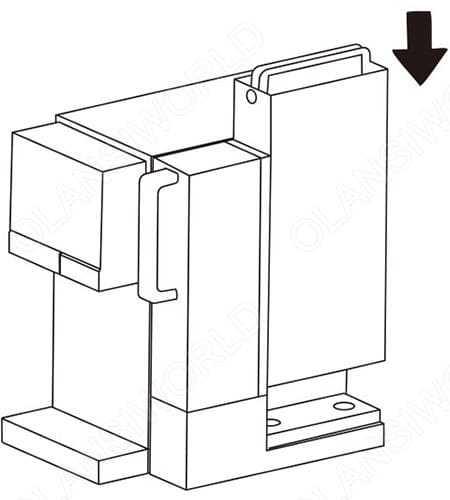

Guidelines for disassembly and assembly of filter

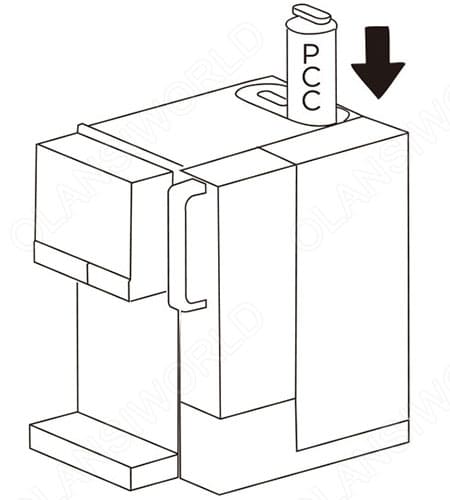

The PCC filter is reset in the operation
When the display screen “Replace filter” “PCC” “0%” appears, the life of the PCC filter element has expired. Please perform the corresponding core change operation. Before the filter element, wash the core to clean the internal structure of the machine and ensure clean water quality.
Detailed procedures:

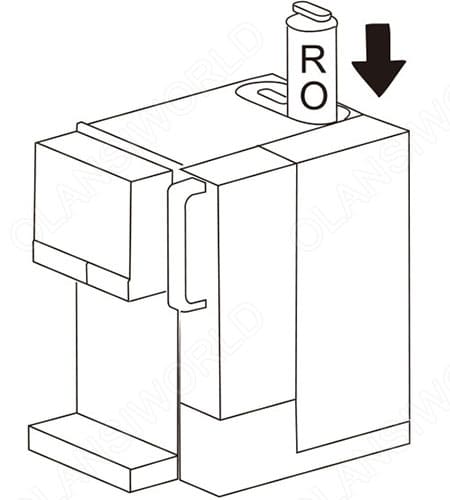

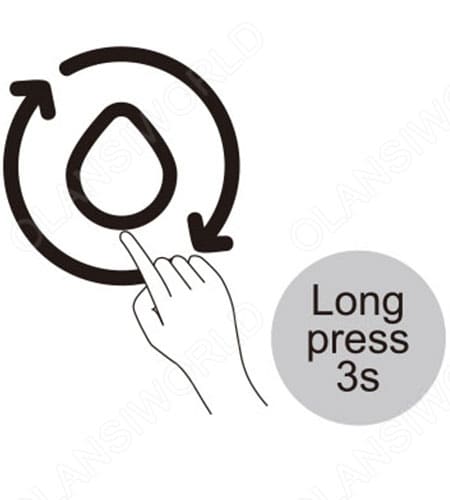

The RO filter is reset in the operation
When the display screen “Replace filter”“RO” “0%” appears, the RO filter life has expired. Please perform the corresponding core change operation.
Detailed procedures:
When the display screen “Replace filter”“RO” “0%” appears, the RO filter life has expired. Please perform the corresponding core change operation.
Detailed procedures:
Tips

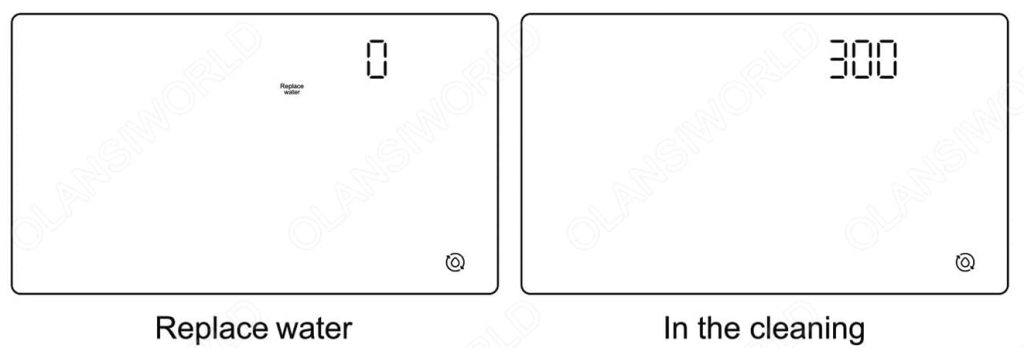

·The whole washing process takes about 5 minutes, after cleaning;
·Please change the water according to the prompts, without any other operations;
·If the life of PCC and RO filter element expires at the same time, first reset the PCC filter element, and then reset the RO filter element;
·If the core change is completed, the water is slightly black, drain the pure water tank for use; if no improvement, press “
” the key for cleaning.
Pay attention to:
The replacement of the filter element must use the original filter element to ensure the safety of drinking water. If there is abnormality during the filter element replacement, please contact the customer service centre in time.
Move the machine
If you need to move the machine, please drain the water first to avoid the damage to the equipment caused by water leakage during the bumpy transportation process.
1) Lift the original tank and the pure tank, pour the water from the tank and dry the tank.
2) Long press the combination key “the ambient water” + ” the hot water ” for 3 seconds, enter the ice tank and empty the water inside the machine. When emptying, the “8” icon displays”PPP”
3) After the drainage, install the original water tank and the pure water tank, and install them with the packing box to move the machine.
W90 Series's Details
W90 Related Videos
W90 Ice, Hot & Cold Water Dispenser
W90 Operation Overview
How to Use the W90
More Posts
Table of Contents
OLANSI
OLANSI HEALTHCARE CO.,LTD
© Olansi Healthcare Co.,Ltd • All Rights Reserved.
